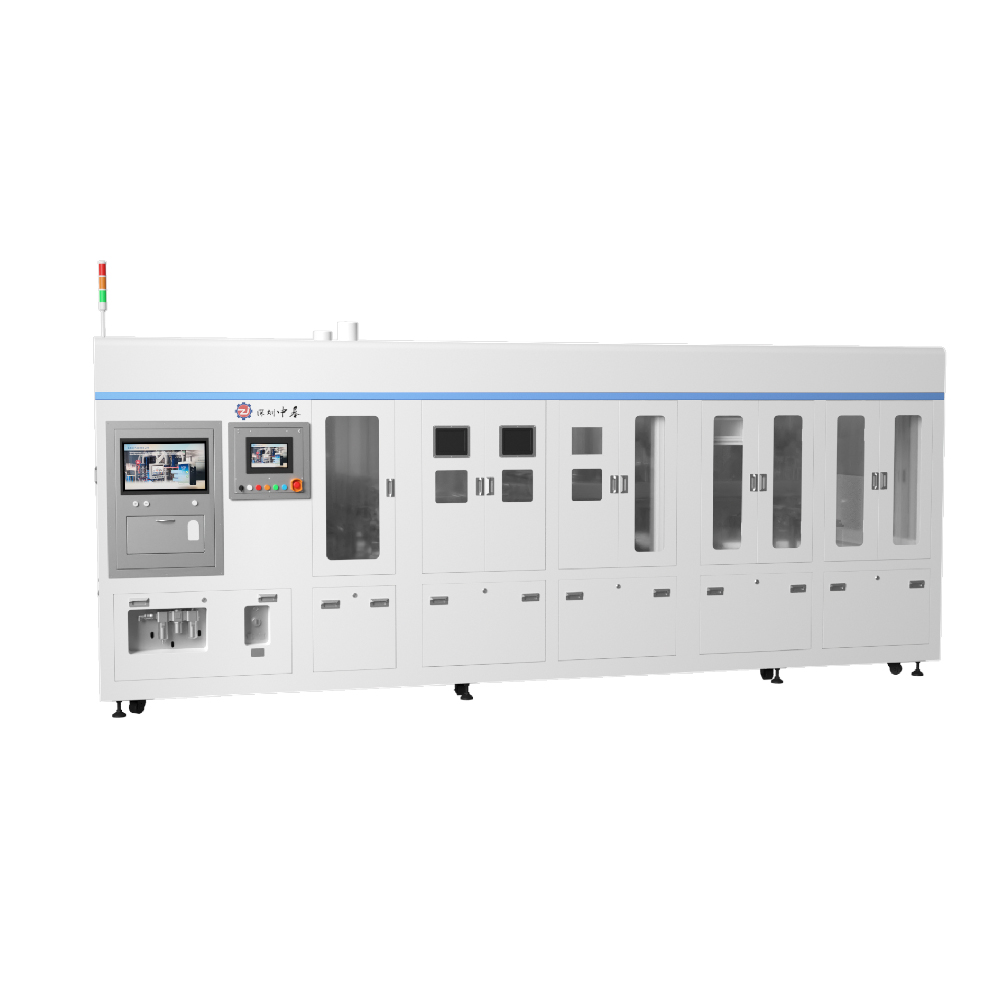

The equipment adopts advanced kneading technology, which can accurately control the flatness of the battery surface and ensure the stability and reliability of the battery in the subsequent processes.
| Equipment capacity | 75PPM |
| Equipment yield | ≥99.8% |
| Equipment failure rate | ≤2% |
| Concentricity of leveling mechanism | ≤±0.03mm |
| Flatness of kneading end face | ≤0.1mm |
| Gluing alignment | ≤0.5mm |
| Gluing angle | 370～400° |
The logistics and material handling is achieved through roller conveyors, synchronous belt conveyors, and robotic transfer systems. Data generated from each workstation can be independently uploaded to the company's MES (Manufacturing Execution System). Production data, process data, and technical data are traceable. The system supports MES integration and standalone operation of line-side servers.
