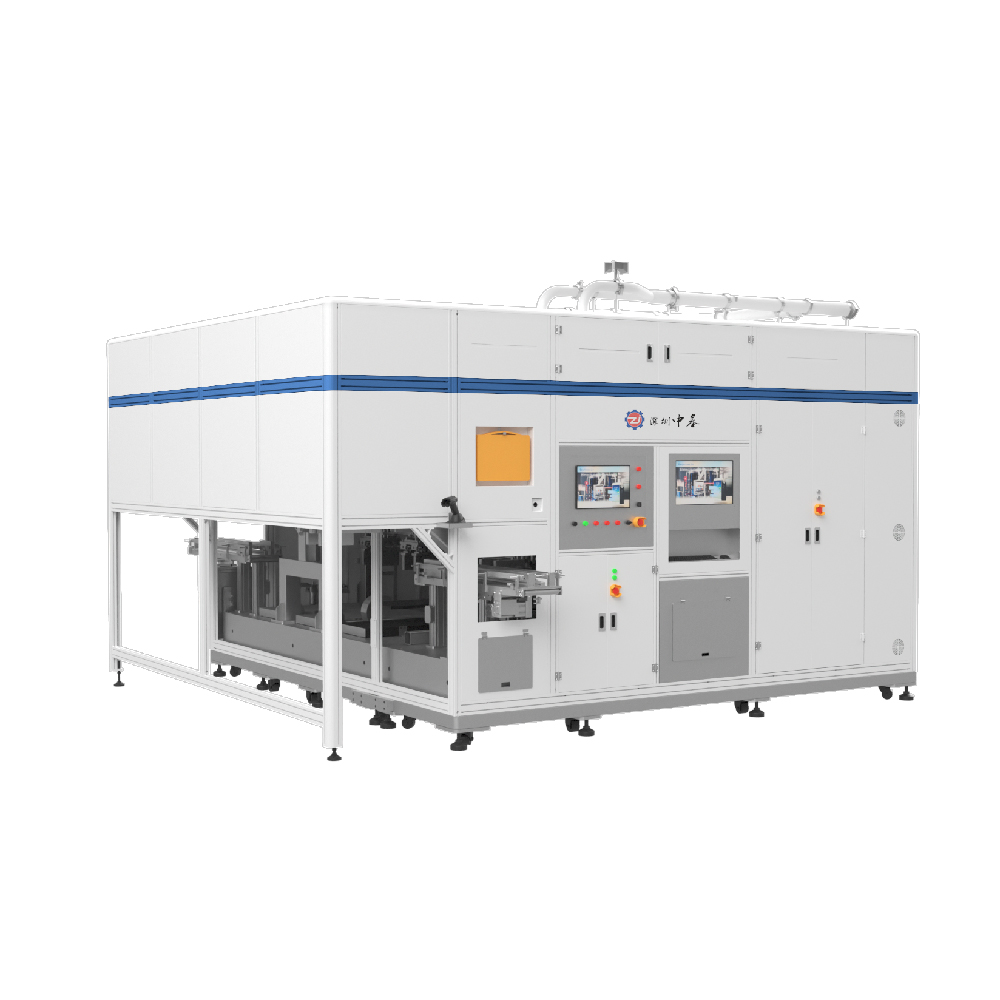

The equipment is used for laser sealing welding between the top cover and the shell of a square aluminum shell battery to achieve a seal between the top cover and the shell.
| Equipment capacity | 6-20PPM |
| Equipment yield | ≥99.5% |
| Equipment failure rate | ≤2% |
| Welding laser | 2kw+2kw ring spot or compound welding |
| Noise | ≤75db |
| Compatible products range | T=20~75mm W=150~300 H=80~220 |
The logistics and material handling is achieved through roller conveyors, synchronous belt conveyors, and robotic transfer systems. Data generated from each workstation can be independently uploaded to the company's MES (Manufacturing Execution System). Production data, process data, and technical data are traceable. The system supports MES integration and standalone operation of line-side servers.
