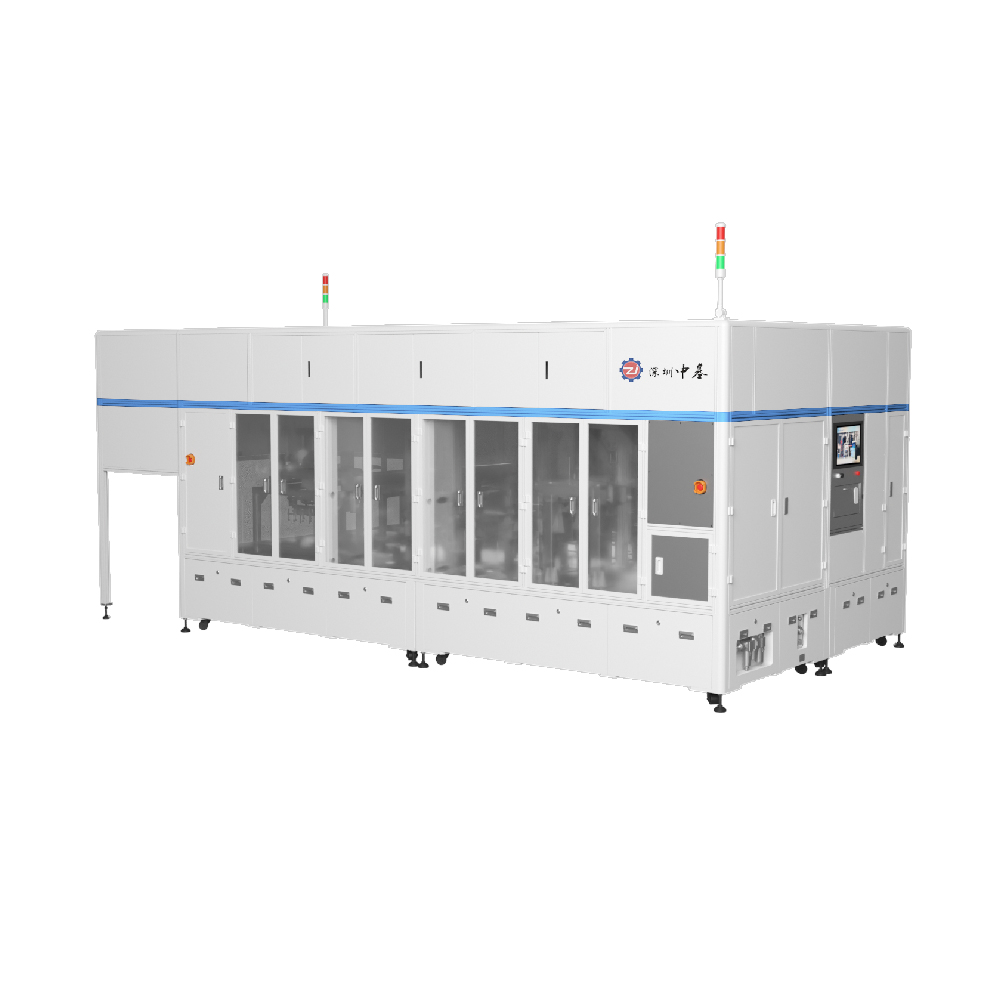

The equipment is used for ultrasonic welding of the adapter piece of the square aluminum shell battery and the battery cell after assembly, through high-frequency vibration, the adapter piece and the battery cell lugs will be fused tightly, so as to achieve the purpose of current conduction.
Equipment capacity | 6-20PPM |
Equipment yield | ≥99.8% |
Equipment failure rate | ≤2% |
Number of soldering layers | Max110 |
Noise | ≤75db |
Compatible products range | T=20~75mm W=150~300 H=80~220 |
The logistics and material handling is achieved through roller conveyors, synchronous belt conveyors, and robotic transfer systems. Data generated from each workstation can be independently uploaded to the company's MES (Manufacturing Execution System). Production data, process data, and technical data are traceable. The system supports MES integration and standalone operation of line-side servers.
