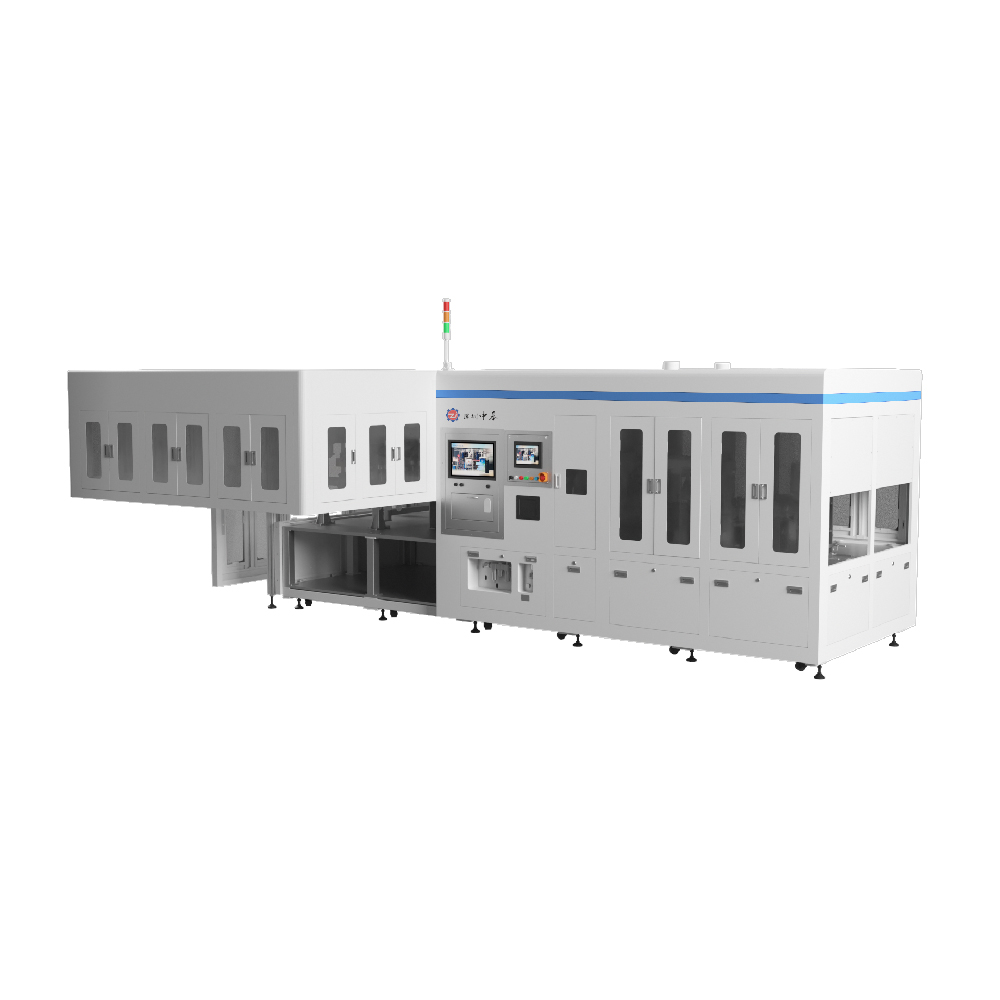

Automated Cell Insertion Machine is an advanced solution for optimizing cylindrical cell assembly processes. Its turret cam drive mechanism design enhances production efficiency and shelling stability.
This automatic cell insertion machine is designed for cylindrical cell production and is equipped with high-precision core and shell diameter testing equipment. This feature helps improve the shelling yield by enabling advanced testing capabilities.
Equipment capacity | ≥150PPM |
Equipment yield | ≥99.8% |
Equipment failure rate | ≤2% |
Precision of shell guiding jig | ≤±0.01mm |
Shell positioning accuracy | ≤±0.1mm |
Precision of shell-in pressure control | ±0.5N |
Applications:
Automated Cell Insertion Machines, commonly used in manufacturing, offer various applications across industries, particularly in electronics assembly. Here are some of their main applications:
1.Battery Pack Assembly : Automated battery insertion machines are commonly used for battery pack assembly. They accurately insert individual cells or modules into designated slots in the battery pack structure, ensuring proper alignment and connection.
2.High-Speed Production : These automatic insertion machines are designed for high volumecell production Compared to manual methods, they can significantly increase throughput by automating the insertion process.
3.Multiple Battery Chemistries : Automated cell insertion machines can handle a wide range of battery chemistries, including Li-ion and lead-acid.
The logistics and material handling is achieved through roller conveyors, synchronous belt conveyors, and robotic transfer systems. Data generated from each workstation can be independently uploaded to the company's MES (Manufacturing Execution System). Production data, process data, and technical data are traceable. The system supports MES integration and standalone operation of line-side servers.
